| Minimum Construction Size | mm | 9600×4000×4000 |
| Overall Dimensions | mm | 6010×2500×2470 |
| Rated Pressure of Hydraulic System | MPa | 24 |
| Maximum Compression Force | kN | 340 |
| Garbage Bin Capacity | m³ | 15 |
| Maximum Loaded Garbage Weight | t | >9 |
| Pushing Stroke | mm | 1250 |
| Pushing Speed | m/min | 3.2 |
| Matching Power Supply Voltage | V | 220/380 |
| Power | kW | 5.5 |
| Total Weight | t | 6 |
| Effective Volume of Feeding Hopper | m³ | 3.5 |
Product Composition
The components of the mobile garbage compactor include: garbage loading container, electrical control system, hydraulic system, compression unit, and collection device.
(1) Garbage loading container: Integrates box shell, compression storage bin (2/3 capacity), and gravity-operated rear door locked by dual hydraulic cylinders. Quick-connect oil circuit enables truck-mounted operation.
(2) Collection device: Hopper-type with dual tilting cylinders flips waste into receiving bin. Optional barrel-turning mechanism available.
(3) Compression unit: Features foldable frame and compression cylinder. Pushing plate transfers waste to storage bin.

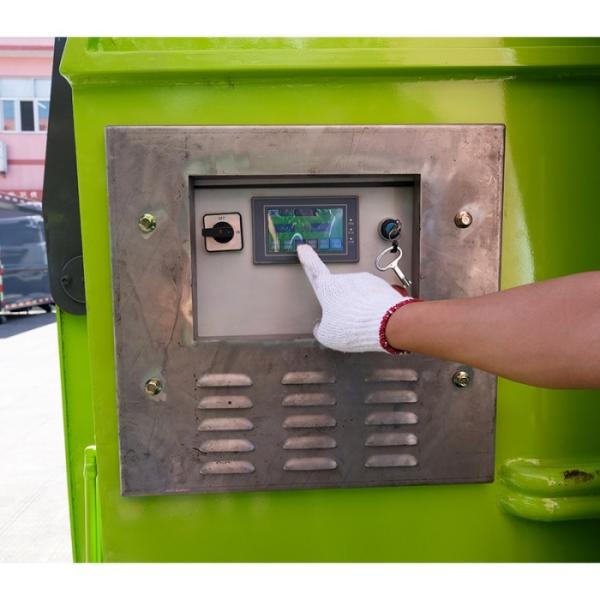

(4) Electrical control: Touchscreen PLC interface on left side for programming; wired remote handle for daily operation.
(5) Hydraulic system: Pump-valve configuration with over-range alarm. Fast-moving circuit optimizes efficiency, stability, and power consumption. Valves execute precise actions via electrical commands. (Word count reduced by ~40% while retaining technical details)
