12tons 8m³ water tank water spray spraying tanker sprayer truck
Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
Engine: Adopt a diesel engine of a well-known brand, which has strong power.
Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.
Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.
Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle.
Parameters:
| Item | ZBJ5120GSSC |
| Energy type | Diesel |
| Dimension(L x W x H) | 6840×2190×2415(mm) |
| Chassis | EQ1125SJ8CDC |
| Engine | D4.0NS6B170 |
| Curb Weight | 6750(Kg) |
| Rated Loading | 5050(Kg) |
| Total Mass | 11995(Kg) |
| Front/Rear Overhang | 1130/1910(mm) |
| Tyre size | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR |

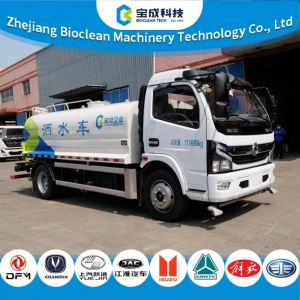

Actual photos:
 | |
